ZSK 3D Loop Device · Resources & Downloads

Voluminous loop effects
– 3D on the F-head.

The 3D Loop Device is the world’s first solution for producing voluminous loop effects – visually inspired by classic chenille embroidery – directly on ZSK F-type embroidery heads. Whether raised logos on college jackets, tactile accents on caps or streetwear designs on tubular goods: the 3D Loop Device brings on-trend 3D effects to your existing machine – with no need to invest in a dedicated specialist machine.

This page brings together the video tutorial, the software and all the documents you need to get started – all in one place.

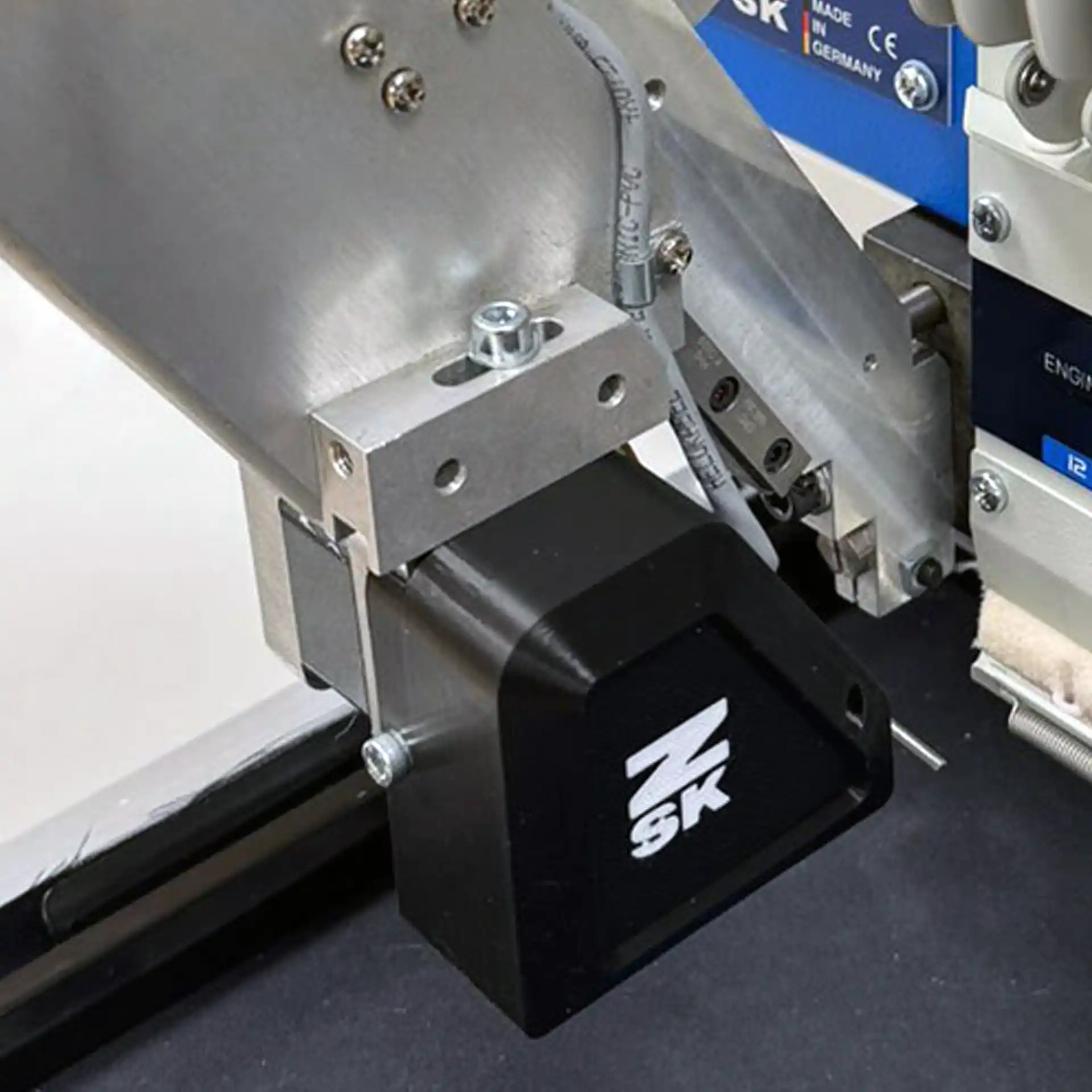

ZSK 3D Loop Device on the F-type embroidery head
Video tutorial

Set-up and use in motion

Step by step: preparing the F-type embroidery head, control commands within the design, the punching sequence for each loop row, and the key tips for a clean result.

Impressions

The device and its effects in detail

Close-up views of the 3D Loop Device on the F-type embroidery head, along with typical loop effects that can be achieved with it.

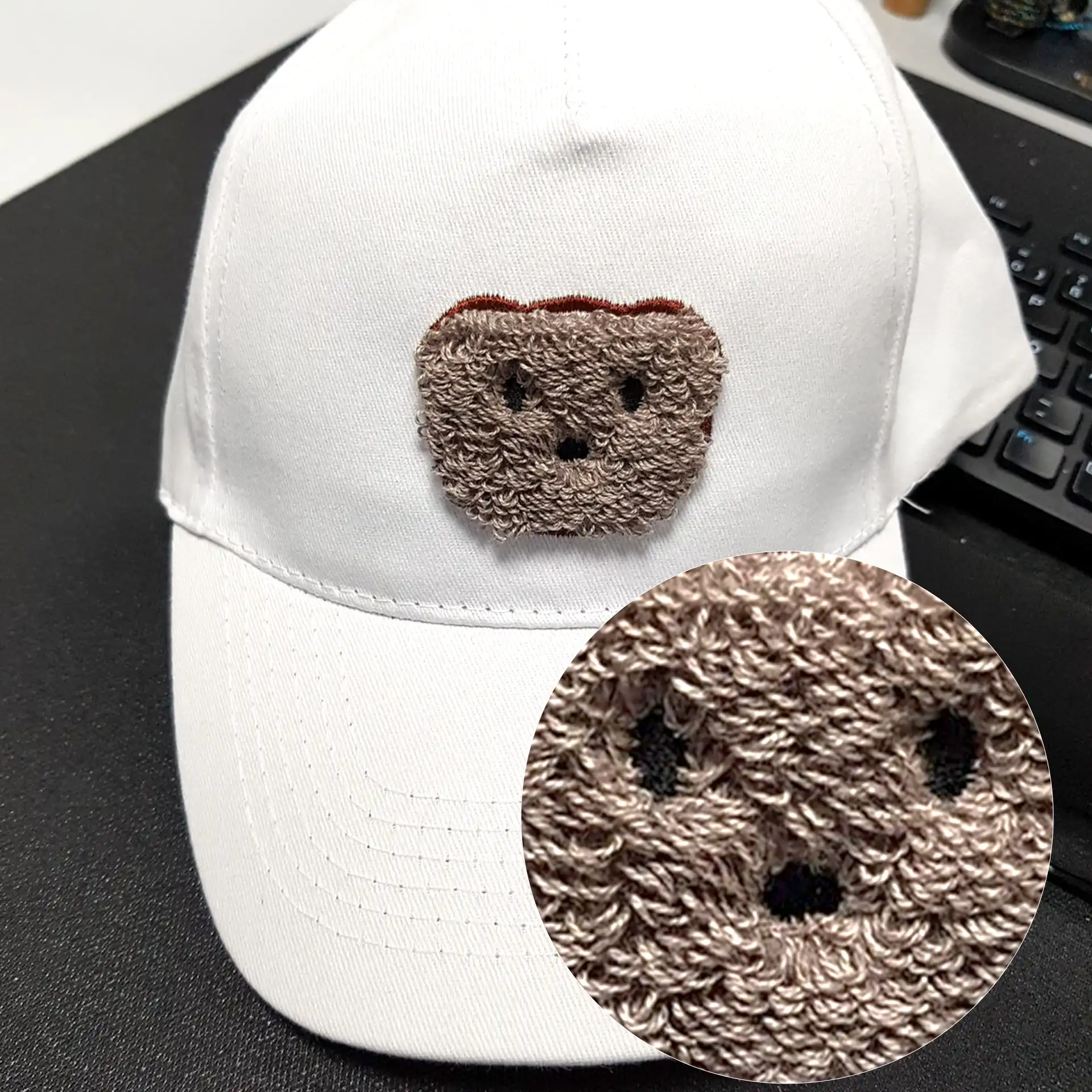

3D Loop Device – close-up view
Close-up view

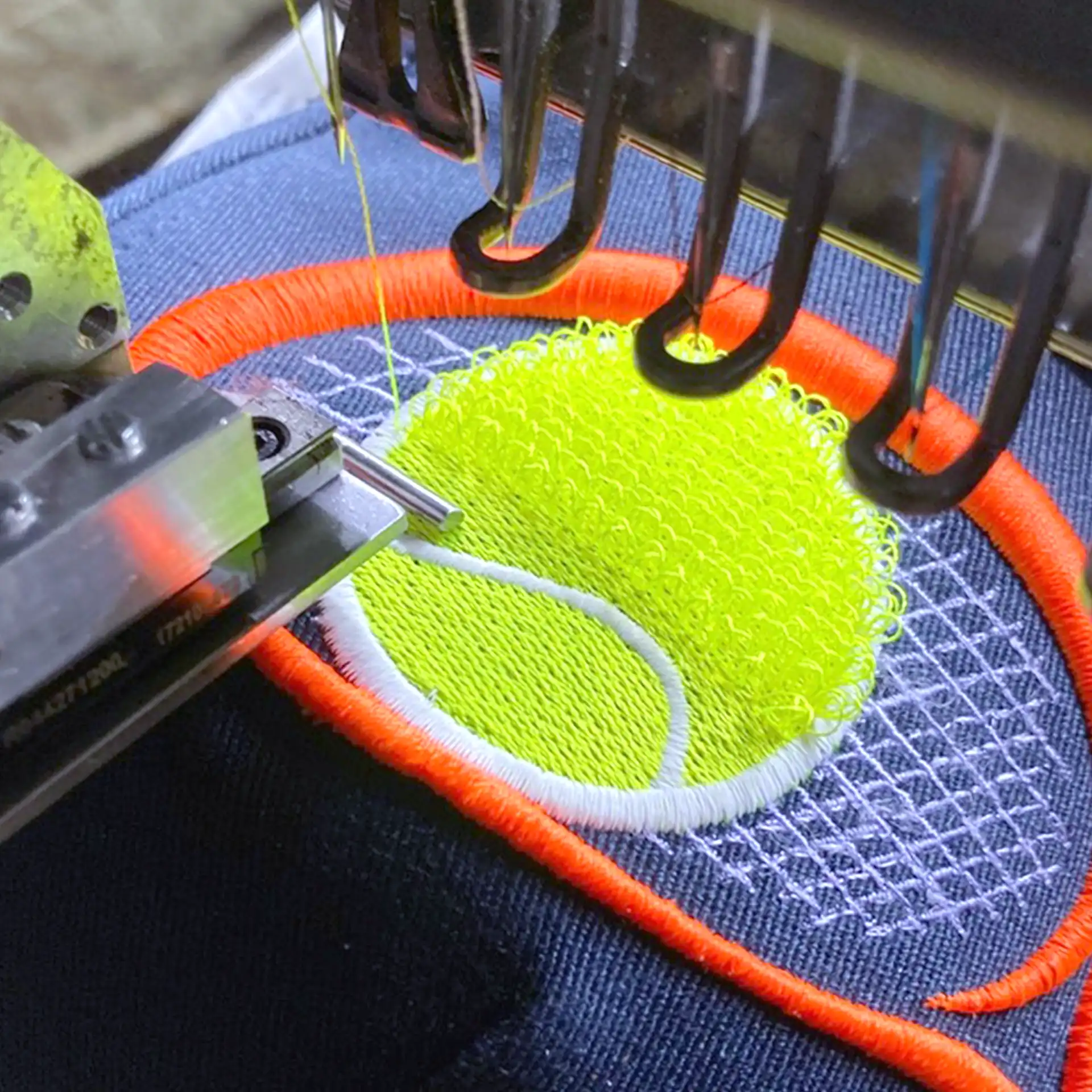

3D Loop Device – mounted on the F-type embroidery head
Mounted on the F-type head

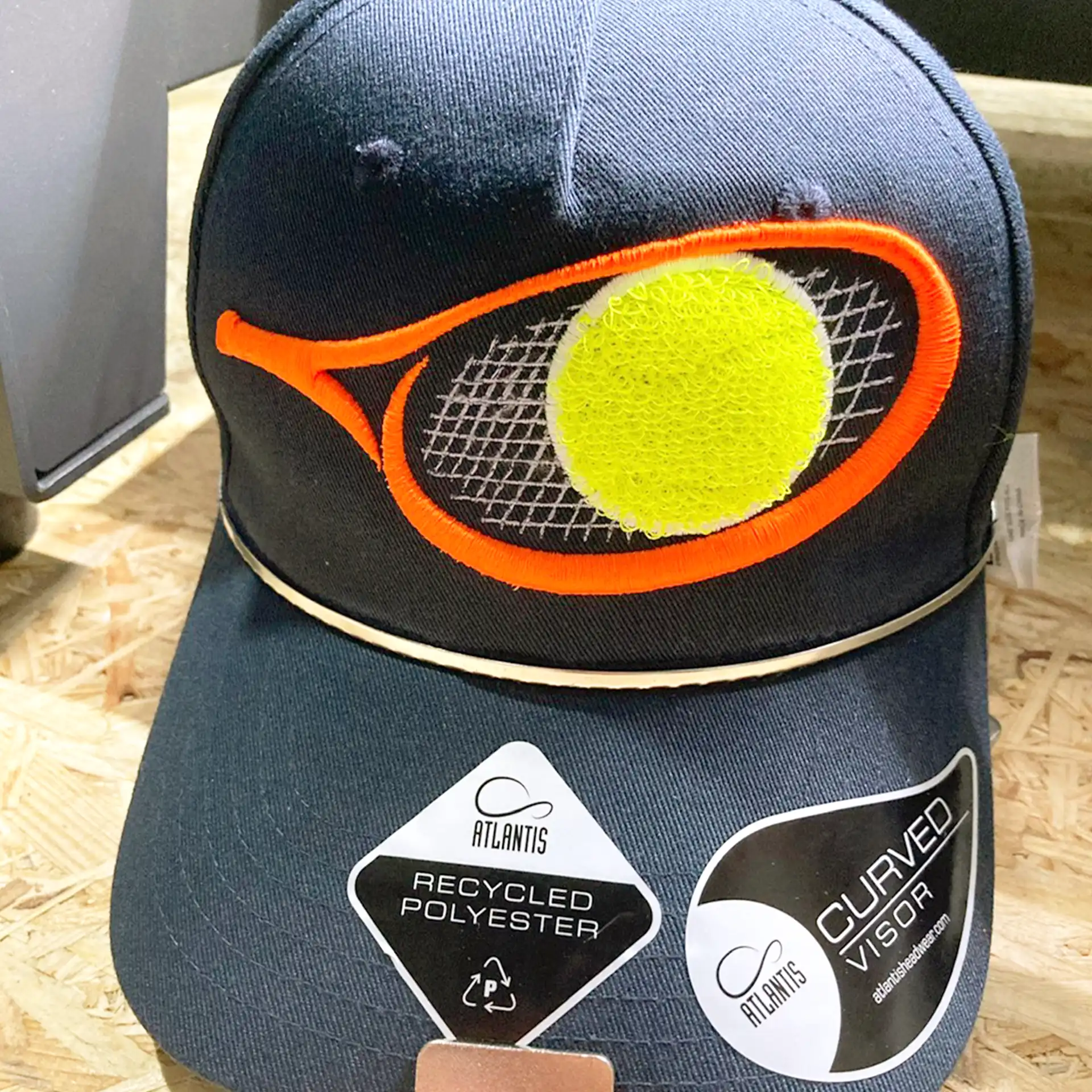

3D Loop Device – effect on a cap
Loop effect
Downloads

Everything you need to get started, in one place

Software, instructions and a ready-prepared sample design – ready to download.

⚙
External link

T8 software

To use the 3D Loop Device, the latest T8 software must be installed on the machine’s control unit – minimum version con_5810 or arm_5810. ZSK provides the relevant download directly in the T8 section.

Go to the T8 download page →
ℹ
PDF · DE / EN

Digitising guide

Notes on data preparation: sequin and loop spacing, line spacing, the punching sequence per row, and the special commands Moss, Chenille and F-head.

Download PDF ↓
★
ZIP · Sample file

‘Tennis ball’ test design

A field-tested template for trying out the 3D Loop Device straight away – a solid basis for understanding spacing, the effect itself and the order of the commands.

Download design file ↓
Note on compatibility: Use of the 3D Loop Device requires the embroidery head to be prepared on the hardware side for sequin operation, along with an up-to-date software update for the T8 control unit (minimum version con_5810 / arm_5810). We are happy to confirm your machine’s compatibility in advance.

Questions about the 3D Loop Device?

Get in touch
