RACER II

The RACER II series offers a number of further developed and enhanced ZSK embroidery machines of the RACER series.

RACER II - 18 Nadeln effizienz

Characteristics

The RACER II models are equipped with 18 needles per head.

The distance between the heads is always 495 mm. This can be recognized by the letter "W" in the machine name.



Many models in the series can be ordered with an embroidery field depth of 500 mm or 700 mm.



Better performance

Performance-optimizing developments such as a quick color change or a quick catcher are contributed by the flat embroidery machine flagship series CHALLENGER.

Features

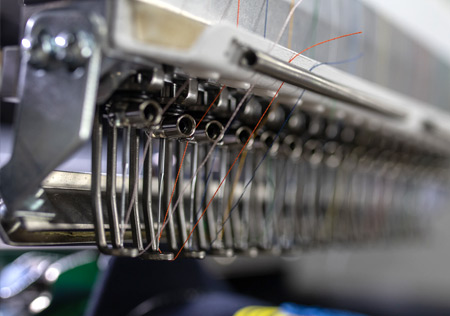

Die RACER II verfügt serienmäßig über 18 Nadeln pro Kopf

18 Needles or colours

18 needles per head as standard increase the possibilities in the areas of efficiency, creativity and perfection. The increased number of needles increases the availability of yarn, for example, and thus reduces downtimes.

Die RACER II ist mit dem schellen ZSK Farbwechsel ausgestattet

Quick Colour Change

Save yourself the time-consuming tinkering and sorting of colors into needles for the optimal, time-saving color change. The machines of the RACEER II are equipped with the fast ZSK color change as standard.

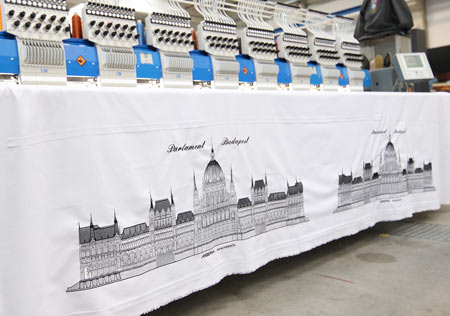

Die Maschinen der Serie RACER II verfügen serienmäßig über die automatische Kopfschaltung der ZSK

Automatic Head Selection

The head selection enables the automatic selection of heads to be switched on and off, e.g. to embroider designs repeatedly, that are larger than the max. embroidery field of a single embroidery head.

Die Maschinen der Serie RACER II verfügen standardmäßig über einen Kopfabstand von 495 mm

Head Distance 495 mm

The head distance describes the distance between the centre of two adjacent heads. The wide 495mm head spacing on multi-head embroidery machines is ideal for bulky products and large designs.

Die Maschinen der Serie RACER II verfügen über den schmalsten Freiarm der Branche serienmäßig

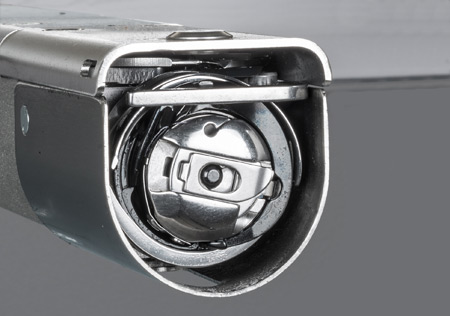

ZSK's Slim Tubular Arm

ZSK offers the slimmest tubular arm for industrial embroidery. Combined with i.e. ZSK's shirt pocket  frames it opens new fields of application. The slim tubular arm measures 44,3 by 43mm and works without a visible picker at the front.

The machines of the RACER II series have the ZSK fast catcher as standard

Fast Catcher

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean m.

Applications (Examples)

Border Frame

Border Frame

For applications such as patches, embroidering in repeats or large individual motifs.

Single Frame in Flat Mode

Single Frame in Flat Mode

With the fastening sets Z200 / Z360, single frames can be attached to the pantograph to embroider in flat mode.

Single Tubular Frame -Mighty Hoop

Single Tubular Frame

The magnetic Mighty Hoop frames make it easier to clamp and thus speed up embroidery.

Cap Frame

Cap Frame

For embroidering caps, including 3D embroidery. Embroidery field max .: 360 mm x 70 mm. Requires the ZSK cap drive.

Shirt Pocket Frame

Shirt Pocket Frame

The frame offers many possibilities, e.g. embroidering shirt pockets with names or logos.

Belt and Ribbon Frame

Belt and Ribbon Frame

Magnet. frames for i.e. belts or ribbons. Embroidery field max .:
200 mm x 90 mm

Optional Devices

Optionale Erweiterungen für ZSK Stickmaschinen - Pailletten Einrichtungen

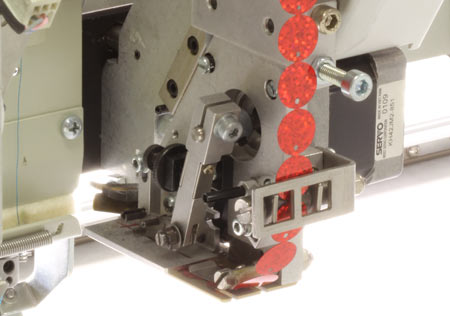

Sequin Devices

ZSK STICKMASCHINEN offers single and twin sequin devices to embroider sequins from 2 mm to 19 mm.

Optionale Erweiterungen für ZSK Stickmaschinen - Perlen Einrichtungen

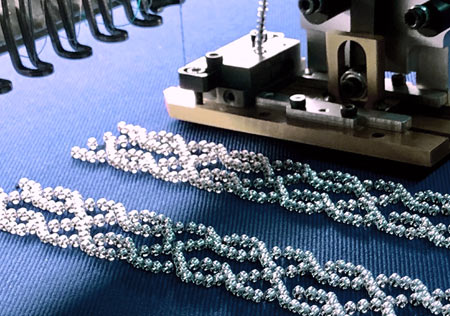

Bead Device

The ZSK bead device allows to embroider up to four different beads in one embroidery design.

Optionale Erweiterungen für ZSK Stickmaschinen - Kordel Einrichtungen

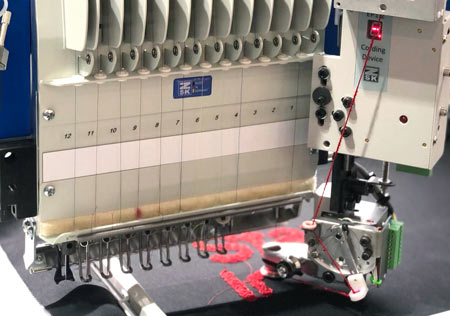

Cording Device

Embroidering with cords in different thicknesses and structures gives your designs an exciting look and feel.

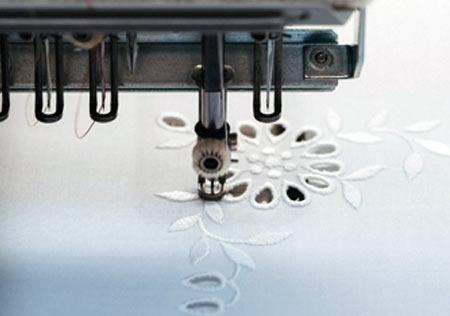

Optionale Erweiterungen für ZSK Stickmaschinen - Bohr-Einrichtungen

Boring Device

The device is a stitch tool that bores a hole in the fabric. The needle and the thread open the hole and embroider around it.

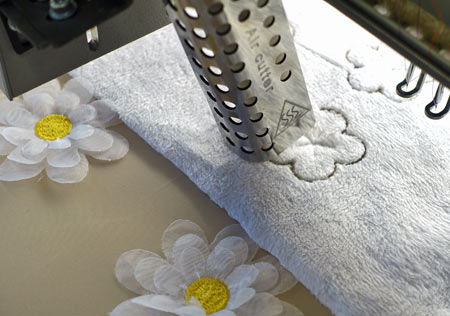

Optionale Erweiterungen für ZSK Stickmaschinen - Hot Air Cutting Einrichtungen

Hot Air Cutting (HAC)

With the hot air cutting device, textile applications can alternatively be cut inexpensively during embroidery.

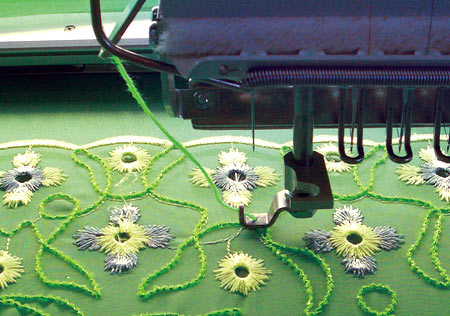

Optionale Erweiterungen für ZSK Stickmaschinen - Kordel-Schlaufe Einrichtungen

Cord-Loop Device

With the cord loop device, decorative threads can be easily processed into embroidery designs.

Models

There are six models to choose from in the RACER II series:

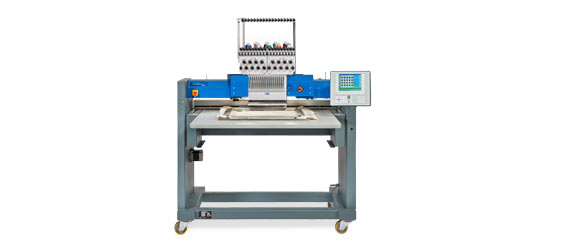

ZSK Stickmaschinen - RACER 1W II

RACER 1WL II

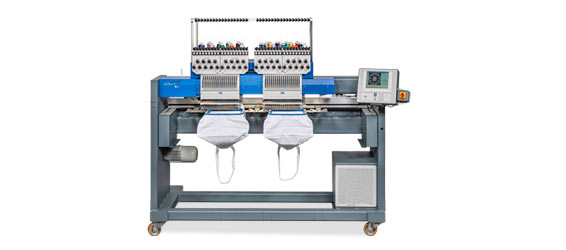

ZSK Stickmaschinen - RACER 2W II

RACER 2W II / RACER 2WL II

ZSK Stickmaschinen - RACER 4W II

RACER 4W II / RACER 4WL II

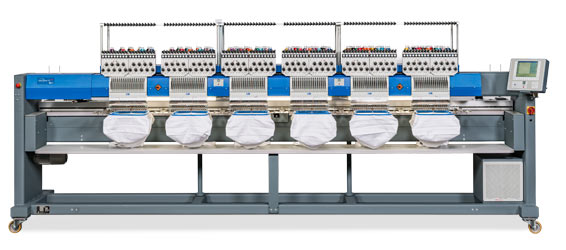

ZSK Stickmaschinen - RACER 6W II

RACER 6W II



All machines have 18 needles per head.
The distance between the heads is always 495 mm, recognizable in the machine name by the letter "W".
The embroidery field depth is 500 mm or 700 mm for machines with the letter "L".



  Heads

Embroidery Field
Tubular
Embroidery Field
Cap
Embroidery Field
Border Frame
RACER 1WL II 1 405 mm x 395 mm
15,94" x 15,55"
70 mm x 360 mm
2,76" x 14,17"
500 mm x 700 mm
19,68" x 27,56"
RACER 2W II 2 405 mm x 395 mm
15,94" x 15,55"
70 mm x 360 mm
2,76" x 14,17"
990 mm x 500 mm
38,98" x 19,68"
RACER 2WL II 2 405 mm x 395 mm
15,94" x 15,55"
70 mm x 360 mm
2,76" x 14,17"
990 mm x 700 mm
38,98" x 27,56"
RACER 4W II 4 405 mm x 395 mm
15,94" x 15,55"
70 mm x 360 mm
2,76" x 14,17"
1.950 mm x 500 mm
76,77" x 19,68"
RACER 4WL II 4 405 mm x 395 mm
15,94" x 15,55"
70 mm x 360 mm
2,76" x 14,17"
1.950 mm x 700 mm
76.,77" x 27,56"
RACER 6W II 6 405 mm x 395 mm
15,94" x 15,55"
70 mm x 360 mm
2,76" x 14,17"
2.970 mm x 500 mm
116,93" x 19,68"



RACER - Front View

RACER II - Front View

RACER 1WL II

Dimension Maximum Minimum
Width 1.517 mm ( A )
59,72" ( A )
1.400 mm ( D )
55,12" ( D )

Height 1.684 mm ( C )
66,3" ( C )
1.490 mm ( F )
58,66"  ( F )



RACER 2W II

Dimension Maximum Minimum
Width 1.956 mm ( A )
77" ( A )
1.839 mm ( D )
72,4" ( D )

Height 1.684 mm ( C )
66,3" ( C )
1.490 mm ( F )
58,66" ( F )



RACER 2WL II

Dimension Maximum Minimum
Width 1.956 mm ( A )
77" ( A )
1.839 mm ( D )
72,4" ( D )

Height 1.684 mm ( C )
66,3" ( C )
1.490 mm ( F )
58,66" ( F )



RACER 4W II

Dimension Maximum Minimum
Width 3.380 mm ( A )
133,07" ( A )
3.263 mm ( D )
128,46" ( D )

Height 1.710 mm ( C )
67,32" ( C )
1.490 mm ( F )
58,66" ( F )



RACER 4WL II

Dimension Maximum Minimum
Width 3.380 mm ( A )
133,07" ( A )
3.263 mm ( D )
128,46" ( D )

Height 1.710 mm ( C )
67,32" ( C )
1.490 mm ( F )
58,66" ( F )



RACER 6W II

Dimension Maximum Minimum
Width 4.359 mm ( A )
171,61" ( A )
4.242 mm ( D )
167" ( D )

Height 1.695 mm ( C )
66,73" ( C )
1.490 mm ( F )
58,66" ( F )



RACER - Dimensions Side View

RACER II - Side View

RACER 1WL II

Dimension Maximum Minimum
Depth 1.730 mm ( B ) 800 mm ( E )
  68,11" ( B ) 31,5" ( E )



RACER 2W II

Dimension Maximum Minimum
Depth 1.330 mm ( B ) 800 mm ( E )
  52,36" ( B ) 31,5" ( E )



RACER 2WL II

Dimension Maximum Minimum
Depth 1.730 mm ( B ) 800 mm ( E )
  68,11" ( B ) 31,5" ( E )



RACER 4W II

Dimension Maximum Minimum
Depth 1.330 mm ( B ) 890 mm ( E )
  52,36" ( B ) 35,04" ( E )



RACER 4WL II

Dimension Maximum Minimum
Depth 1.730 mm ( B ) 890 mm ( E )
  68,11" ( B ) 35,04" ( E )



RACER 6W II

Dimension Maximum Minimum
Depth 1.640 mm ( B ) 890 mm ( E )
  64,57" ( B ) 35,04" ( E )
