SPRINT 7XL - Die SPRINT mit dem extra weitem Stickfeld

SPRINT 7XL – the embroidery machine with the little extra width

The SPRINT 7XL is a ZSK single-head embroidery machine with 18 needles and a maximum embroidery field width of 1,400 mm!

In this way, particularly long textiles such as table runners, flags, bath towels or tablecloths can be perfectly embroidered. Of course, the SPRINT 7XL can also embroider in cap and tubular modes.

We wanted to simplify embroidery preparation on the machine and improve efficiency during embroidery.

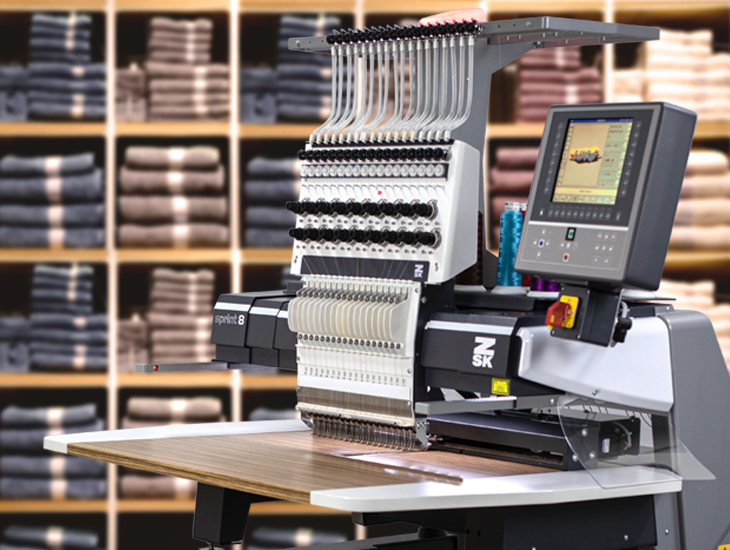

The SPRINT 8 is a spectacular eye-catcher for showrooms, studios and shops. It is the embroidery machine for every situation in which functionality and sophisticated design are not mutually exclusive.

For the modern and ergonomic design of the new SPRINT, we were able to win industrial designer Andreas Schulze, who combined functionality and sophistication in the appearance of the SPRINT 8 in an excellent way.

Standards

Operation Mode Tubular

Operation Mode Border Frame

Operation Mode Cap

ZSK STICKMASCHINEN hat den schmalsten Freiarm der Stickbranche entwickelt.

Slim tubular arm

ZSK STICKMASCHINEN has developed the slimmest tubular arm for industrial embroidery machines. Many areas and products can now be processed easily that were previously difficult or impossible to access for embroidery.

18 Needles

18 needles offer space for many different colors and different yarns for creative use. You can also improve your workflow with the placement of yarns with the highest consumption to save setup times.

Die T8 Steuereinheit für alle ZSK Stickmaschinen

T8 - Control Unit

The intuitive and logical T8 control unit offers many useful functions. Use clever options such as rotating or aligning patterns on the machine, the integrated design editor or the tool for quick monograms.

ZSK Stickmaschinen der Serie SPRINT sind in allen Betriebsarten zu Hause.

Flexible for all operation modes

The SPRINT can operate in tubular, cap and flat embroidery modes. Switching between modes is quick and easy. Different equipment variants are available to meet the various operational requirements.

ZSK Stickmaschinen sind robust und langlebig.

Robust industrial machine

ZSK embroidery machines are designed for industrial use. Therefore, best quality components are of highest importance for the durable and reliable operation of ZSK embroidery machines and their outstanding embroidery qualities.

Countless applications

For the SPRINT series there are frames for almost any application: single frames for shirts, T-shirts, jackets bags etc., cap frames, special frames for shirt collars, shoes and socks, border frames, magnetic frames etc.

Standard Features

Slim Tubular Arm: ZSK STICKMASCHINEN has developed the slimmest tubular arm for industrial embroidery machines. Many areas and products can now be processed easily and without complications that were previously difficult or impossible to access for embroidery.
Thread Break Detection: With the help of the automatic thread break detection, a ZSK embroidery machine stops automatically if the upper or lower thread breaks or the thread runs out in the bobbin.
Height Adjustable Presser Foot: Adjust the presser foot to the height of the embroidery material in order to achieve better embroidery quality.
Automatic Thread Tensioner: The automatic adjustment of the thread tension ensures a constantly optimized transport of the thread to the needle and thus enables high-quality embroidery.
T8 Control Center: The intuitively and logically structured control and communication center for ZSK embroidery machines. The T8 interface can be displayed and operated in 14 different languages.
Memory: The T8 control unit offers integrated memory for approx. 80 million stitches and thus provides space for a large number of your frequently used embroidery designs.

Barcode Reader: With a barcode reader connected to the T8 via USB, barcode patterns can be loaded from a connected network and various control commands can be executed.
Connectors: A slot for the standard RJ-45 network connector and three USB ports for other devices are available for communication, memory expansion and other functionalities.
Network: The T8 works with Microsoft's network protocols and thus enables simple communication with connected company networks, digital workflow solutions or the ZSK operating data information system MY.ZSK.
Safety Feature Light Barrier: A light barrier installed in front of the working area ensures greater work safety during embroidery. As soon as the operator enters this light barrier, the embroidery process is automatically stopped.
MADE IN GERMANY: This machine was designed, constructed and manufactured in Germany for the requirements of the embroidery industry.

Safety - Workplace and Workflow

Adapt your plant to operational requirements.

Our machines are already set up to meet high safety standards and comply with legal requirements. We also offer optional equipment that allows you to adapt the safety of your plant to your in-house requirements.

Safety Feature - Light Barriers: A light barrier installed in front of the working area ensures greater work safety during embroidery. As soon as the operator enters this light barrier, the embroidery process is automatically stopped.

Safety Feature - Emergency Stop Switch: The emergency stop can be used to interrupt the power supply and bring the embroidery machine to a standstill in the event of danger or to avert danger.

Safety Feature - Cover for Thread Take-Up Lever: With the thread take-up lever cover closed, 100% prevention of careless or accidental contact and injury with the levers moving rapidly up and down during operation.

Securing Workflow - Status Display: The status display provides a quick overview of the function of the embroidery machine from a distance via a multicolored light signal.

Good to know!

Super wide embroidery field with 1,400 mm x 400 mm
18 Needles allow embroidery with more colours or different yarns
SPRINT 7XL can be quickly changed over between tubular, cap and border frame operating modes.
The slimmest tubular arm in the industry allows embroidery in confined spaces
Perfect for small and large companies.
Robust embroidery machine for industrial 24/7 use.
Automatic backstitch function
Built-in universal power supply, 110 V/60 Hz and 220 V/50 Hz
Countless embroidery hoops and sizes for all embroidery needs

Optional devices for sequins, beads, cords, boring and hot air cutting
Coloreel suitable
Integrated design editor in the T8 control unit
Large internal memory capacity: up to 80 million stitches
Handles all common industry codes such as DST, DSB, KSM, DSG, EXP and more ...
Optional and retrofittable laser pointer
Loading of designs via network
LED illumination of embroidery area
Reusable environmentally friendly packagin

Applications

Border Frame

For applications such as patches. Embroidery field max .:
1,400 mm x 400 mm

Shoe Frame

For customizing shoes, e.g. for workwear or sports.

Sock Frame

To embroider monograms, logos or other decorations onto socks.

Cap Frame

For embroidering caps, incl. 3D embroidery. Embroidery field max .: 360 mm x 70 mm

Shirt Pocket Frame

Many options, e.g. for embroidering shirt front pockets with names or logos.

Stencil Frame

Ideal for embroidering finished fabric labels for e.g. name badges.

Magnetic Belt and Ribbon Frame

I.e. for belts or straps. Embroidery field max .:
200 mm x 90 mm

Shirt Collar Frame

Embroider on shirts while the shirt remains in the package.

Mighty Hoop

Embroider faster with the magnetic frames from the USA.

Snap Frames

The foldable metal frames are available in many variants.

Smake Jump

Accurate and reproducible positioning of designs.

SPRINT 7XL
Drawings

Heads / Needles
No. Heads	1
No. Needles	18

Embroidery Field
Width	1.400 mm
Depth	400 mm
Cap	70 mm x 360 mm
Border Frame	1.400 mm x 400 mm
Tubular	300 mm x 400 mm

Embroidery Speed
Cap	1.000 rpm.
Border Frame	1.000 rpm.
Tubular	1.000 rpm.

SPRINT 7XL - Front View

Dimensions	Maximum	Minimum
Width	2.923 mm ( A )	2.536 mm ( D )
Height	1.645 mm ( C )	1.540 mm ( F )

SPRINT 7XL - Side View

Dimensions	Maximum	Minimum
Depth	1.219 mm ( B )	* 850 mm ( E )

* The middle struts below the tabletop can be removed for tubular operation. The side braces cannot be dismantled.
