ZSK'S TFP - Automation

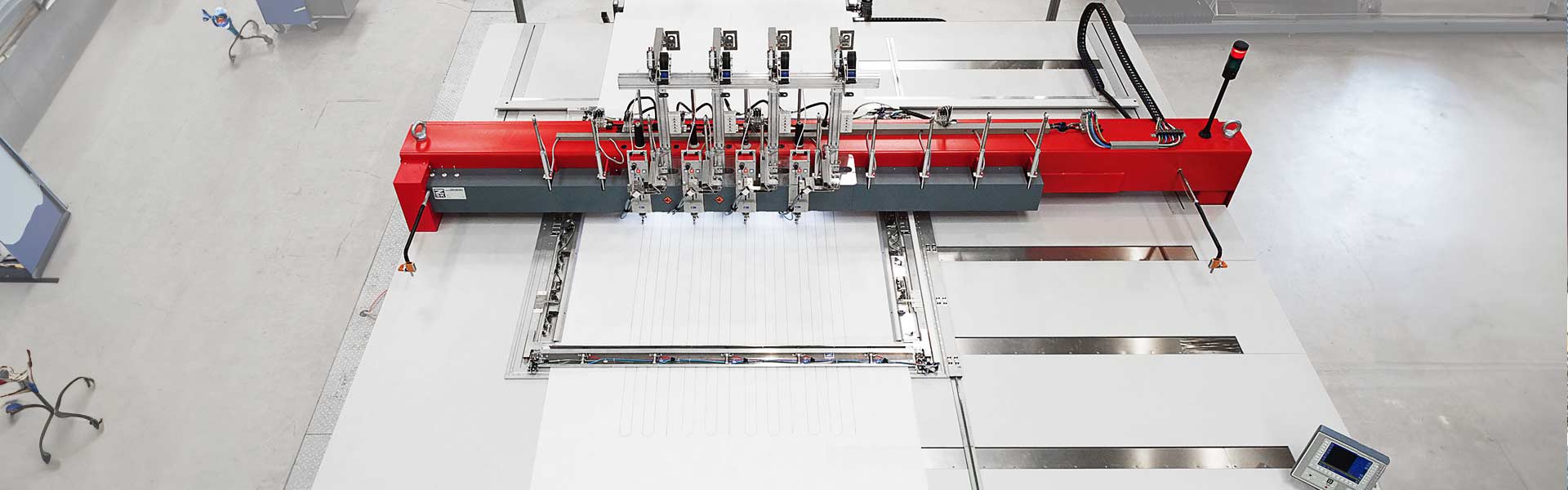

Continuous Production

Various automation solutions enable laying up continuous fibres in a continuous production process.



  • Roll2Cut pull through system.
  • Roll2Roll pull through from back to front and reverse.
  • Pneumatic clamping system.
  • Pneumatic fibre cutter.

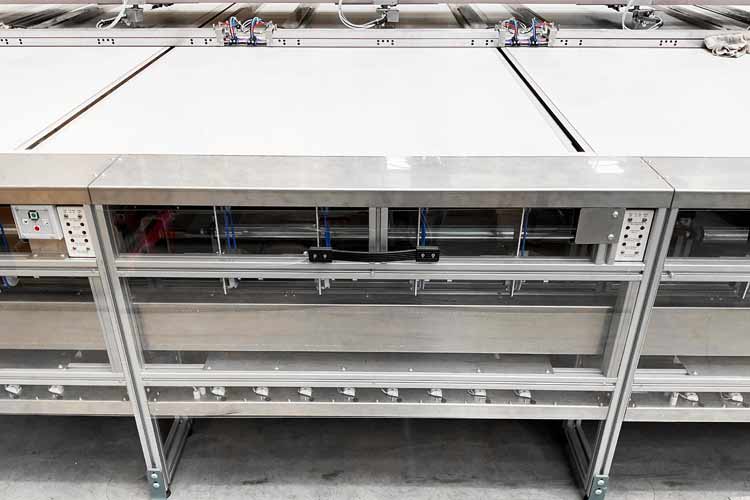

Roll2Roll pull through from back to front and reverse.

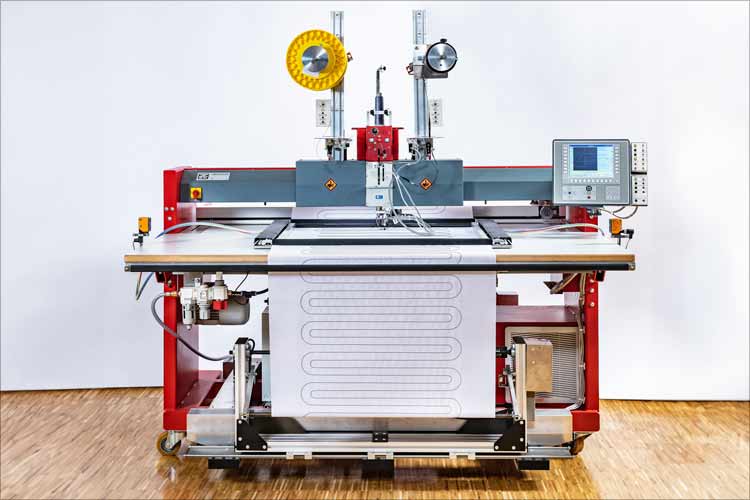

Roll2Cut pull through system

Economical production thanks to ZSK automation



ZSK - Automation - Automatic bobbin changer



12% increase in up-time

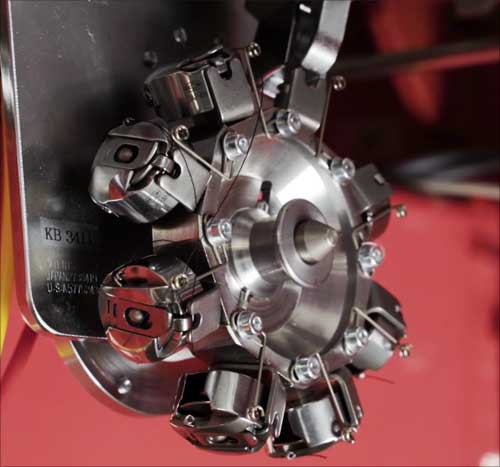

Automatic bobbin changer



  • The automatic bobbin changer has a magazine
    for 8 bobbins.
  • In the T8-2 control unit you can set marker
    when bobbin changes should take place
    automatically.



ZSK Automation - Large capacity rotary hook and suitable Auto Select bobbin changer



50% additional bobbin thread

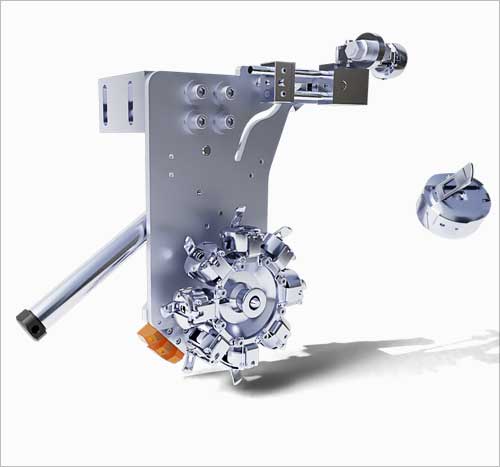

Large capacity rotary hook and suitable Auto Select bobbin changer

  • ZSK offers bobbins with about 50% more thread
    capacity compared to the ZSK standard bobbin.
  • Even this standard bobbin offers more thread in
    comparison to competitors bobbins.



ZSK Automatisierung - End of thread detection

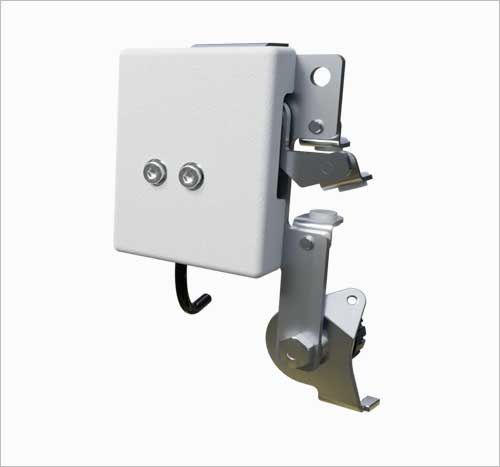

End of thread detection



  • End of the thread is detected directly at the cone.
  • Prevents need for new threading.
  • Optimized upper thread guidance.
  • Quick upgrade for existing machines.
